High Efficiency DC Inverter Heat Pump Control Board | 1.5kW 2kW 3.5kW Energy-Saving PCBA with Digital Thermostat & Sensor

High Efficiency DC Inverter Heat Pump Control Board | 1.5kW 2kW 3.5kW Energy-Saving PCBA with Digital Thermostat & Sensor

Adedi:	1
fiyat:	US$150.00 - 200.00
Ödeme Şartları:	T/T,D/P,Western Union,L/C

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Ürün Tanımı

Basic Info.

Layers

Double-Layer

Base Material

FR-4

Certification

RoHS, CCC, ISO

Customized

Condition

New

Rated Power Input

3kw/4kw/5kw/6kw/7kw/8kw/10kw/12kw/15kw/18kw/25kw

Rated Voltage

Single Phase AC220V, Three Phase AC380V

Heat-Dissipating Method

Air Cooling, Liquid Cooling

Operating Power Frequency

50/60 Hz

Type of Compressor

BLDC/Pmsm

Communicated Method

RS485

Refrigerant

R410;R32;R290

Function

Cooling, Heating, Hot Water, Solar Power

Remote Control

WiFi, APP

Interaction

Touch Screen, Touch Button

Transport Package

Protect Product with Polyfoam and Multi Layer PA

Specification

length 288mm; width 154mm; height 160mm

Trademark

Origin

Guangdong, China

HS Code

8537101190

Production Capacity

300000 Pieces/Year

Packaging & Delivery

Package Size

435.00cm * 390.00cm * 320.00cm

Package Gross Weight

10.000kg

Product Description

Energy-Saving 1.5kw 2kw 3.5kw Single Phase DC Inverter Integrated Heat Pump PCBA with Digital Thermostat and Sensor

Product Description

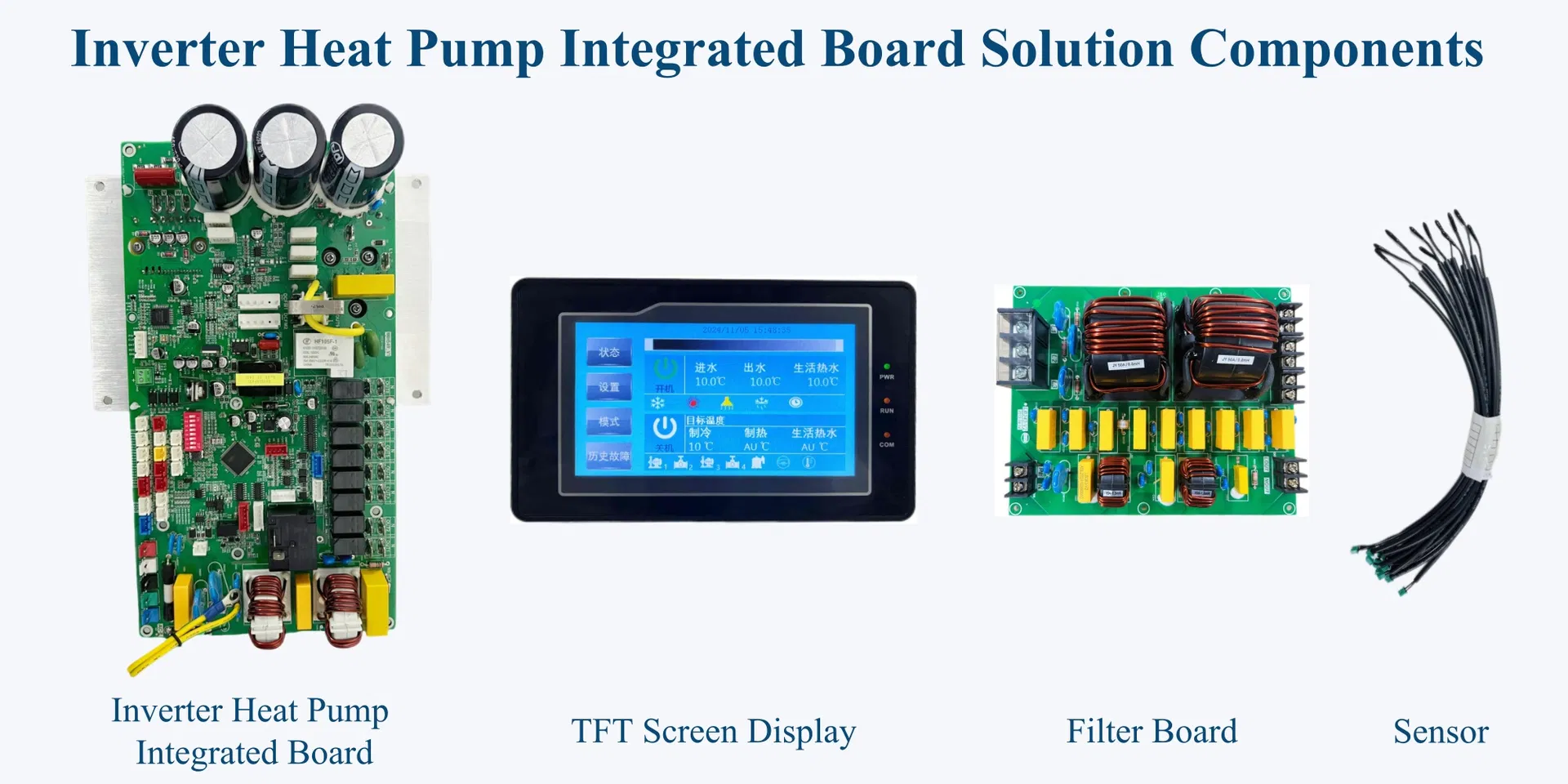

Heat Pump Main Control & DC Inverter Compressor Driver Integrated Board Complete Solution

Heat pump main control and DC inverter compressor driver integrated board complete solution is designed for heat pump system control and dc inverter compressor drive, and wired thermostat also can be controlled by WiFi Tuya APP.

Focusing on DC inverter scenarios, we has developed a comprehensive product line to provide integrated solutions for you.

Our solutions are capable of providing customized algorithms based on your application scenarios and compressor drive parameters, as well as offering full-process technical support. khas adhered to the philosophy of innovation-driven and technology-led development, striving to become a global leader in efficient, energy-saving, and environmentally friendly inverter technology solutions. With twenty years of specialized experience, Kingsum has accumulated strong capabilities in the field of inverter technology, making a high-tech modern enterprise that integrates research and development, production, and sales.

High Efficiency DC Inverter Heat Pump Control Board | 1.5kW 2kW 3.5kW Energy-Saving PCBA with Digital Thermostat & Sensor 0

High Efficiency DC Inverter Heat Pump Control Board | 1.5kW 2kW 3.5kW Energy-Saving PCBA with Digital Thermostat & Sensor 1

High Efficiency DC Inverter Heat Pump Control Board | 1.5kW 2kW 3.5kW Energy-Saving PCBA with Digital Thermostat & Sensor 2

High Efficiency DC Inverter Heat Pump Control Board | 1.5kW 2kW 3.5kW Energy-Saving PCBA with Digital Thermostat & Sensor 3

High Efficiency DC Inverter Heat Pump Control Board | 1.5kW 2kW 3.5kW Energy-Saving PCBA with Digital Thermostat & Sensor 4

Specification

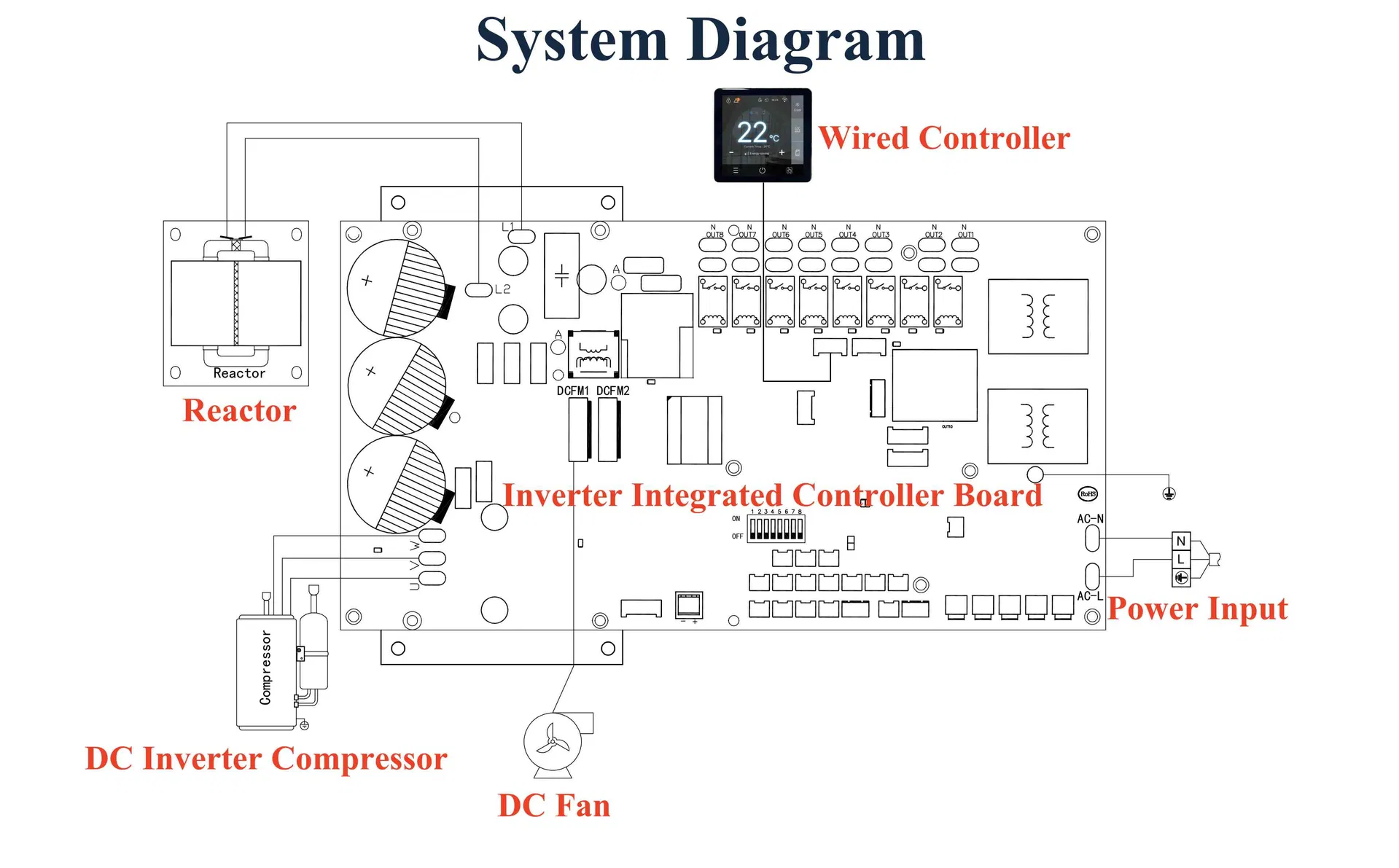

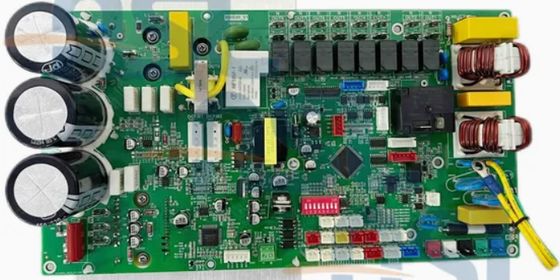

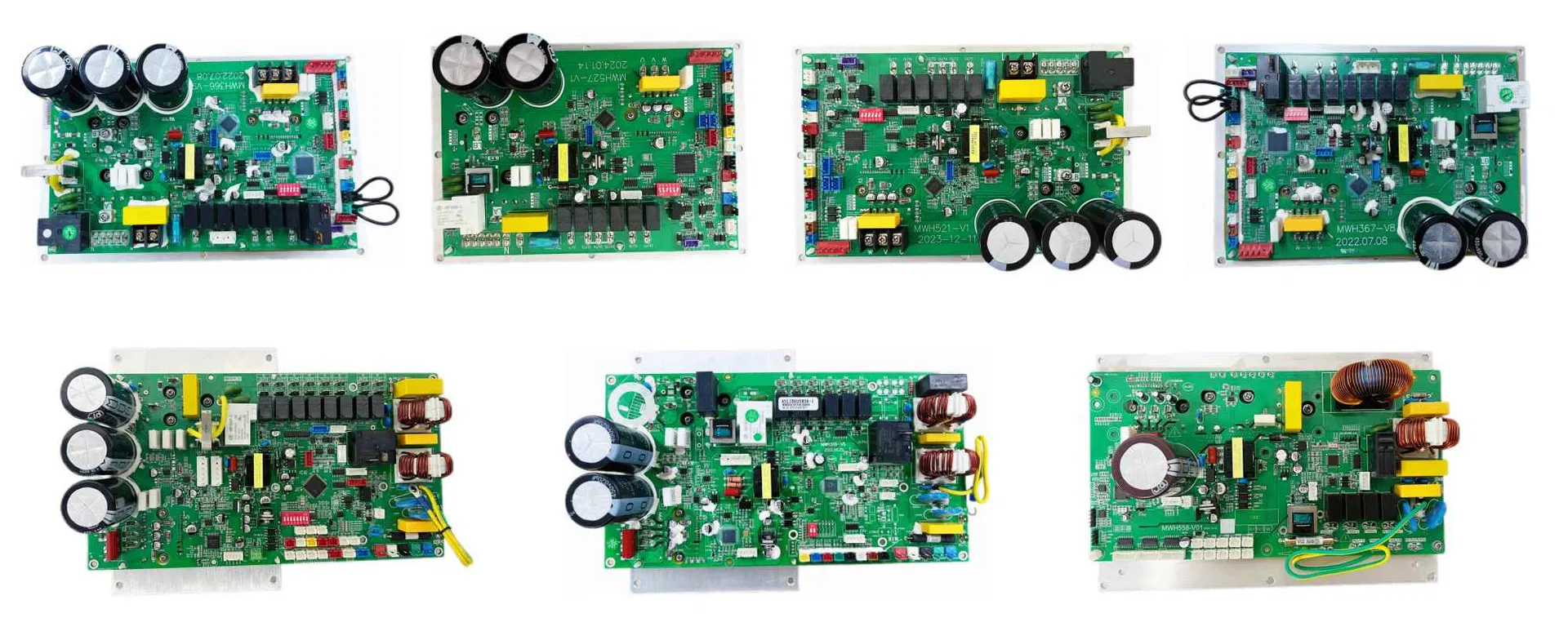

1. Inverter Heat Pump Integrated Board: Reveive signal from wire thermostat, WIFI and sensors, to control the whole heat pump system and to drive inverter compressor for the heat pump system

High Efficiency DC Inverter Heat Pump Control Board | 1.5kW 2kW 3.5kW Energy-Saving PCBA with Digital Thermostat & Sensor 5

Product Name	Single Phase 1.5kw/2kw/3.5kw Integrated PCBA for Heat Pump system control and DC Inverter Compressor Drive	Power Factor	0.99
Feature Description	PFC integrated	Operating Temperature Range	-30~60°C
Usage Scenarios	solar heat pump/heat pump/pool heat pump/dehumidifier/dryer/floor heating/water heater/ water cooler	Storage Temperature Range	-30~80°C
Rated Voltage	Single-Phase AC220V	Operating Humidity Range	10%~95%(No frosting and condensation)
Operating Voltage Range	AC175V-AC265V	Applicable Altitude	2000m
Operating Power Frequency	50/60Hz	Dimension(without radiator fins)	288154160 mm
Rated Power Input	1.5kw/2kw/3.5kw	On-off Input	8 channel
Heat-dissipating Method	Air cooling/Liquid cooling	Analog input	14 channel
Compressor Type	BLDC/PMSM Compressor	Relay output	9 channel
Range of Output Mechanical Frequency	20Hz-120Hz	DC blowers output	2 channel
Output Efficiency	0.93-0.95	Expansion valve output	2 channel
Communication Mode	RS485	Variable-speed pump	1
Refrigerant Type	R410;R32;R290

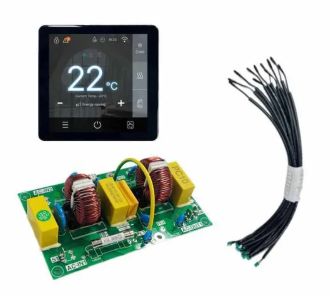

2. Wire Thermostat: user interface to interact with the heat pump

High Efficiency DC Inverter Heat Pump Control Board | 1.5kW 2kW 3.5kW Energy-Saving PCBA with Digital Thermostat & Sensor 6

Avaliable Product Type	86 Type IPS Touch Screen Wire Thermostat 86 Type LCD Touch Button Wire Thermostat 4.3 Inch TFT Touch Screen Wire Thermostat 7 Inch TFT Touch Screen Wire Thermostat
Input Voltage	DC 12V±5%
Rated Power	<6W
Communication Protocal	Modbus-RS485
Remote Control	App Controlled
Dimension	86x86x20mm, 17010533mm, 22616338mm
Display Method	IPS Screen, LCD Screen, TFT Screen
Resolution	480480,480272,480*800
Interaction	Single Point Touch Screen, Touch Button
Operating Temperature Range	-20~70°C
Storage Temperature Range	-30~70°C
Operating Humidity Range	0%-90% RH
Applicable Altitude	2000M
Communication Interface	RS485*1
Optional Function	WIFI, 4G
Certificates	CE,RoHS,ISO
UI	UI Provided by Customer

3. Accessory Products: sensors, reactor, PFC inductor, filter board: we use the world-famous brand OHIZUMI sensors for high quality garantee

High Efficiency DC Inverter Heat Pump Control Board | 1.5kW 2kW 3.5kW Energy-Saving PCBA with Digital Thermostat & Sensor 7

Usage Scenarios:

solar heat pump;water heater;water cooler;floor heating;heat pump dehumidifier;heat pump dryer;air to water heat pump;swimming pool heat pump;air source heat pump;ground source heat pump;geothermal heat pump

High Efficiency DC Inverter Heat Pump Control Board | 1.5kW 2kW 3.5kW Energy-Saving PCBA with Digital Thermostat & Sensor 8
